a312 stainless steel pipe
2. Standard: ASTM A312 / ASME SA312, the international benchmark for corrosive fluid engineering
3. Process: Heavy welded or hot pierced seamless configurations designed for long-term industrial utility
4. Size Range: Nominal Pipe Size (NPS) 1/8" to 30", covering light-wall Sch 10S to heavy-wall Sch 80S
5. Heat Treatment: High-temperature solution annealing followed by forced water quenching to restore carbon balance
6. Surface Finish: Clean solution annealed and pickled (SA&P), descaled matte, or commercial sandblasted
7. Application: Oil and gas refinery pipelines, chemical processing towers, urban drainage, and food factories
8. Service Advantage: Full material traceability with heat numbers, MTC EN 10204 3.1 provided upon shipment
9. Packaging: Hexagonal ocean bundles bound with strong steel strapping, equipped with protective end caps
10. Key Advantage: Tremendous structural durability, universal fitting compatibility, and excellent lifecycle economy

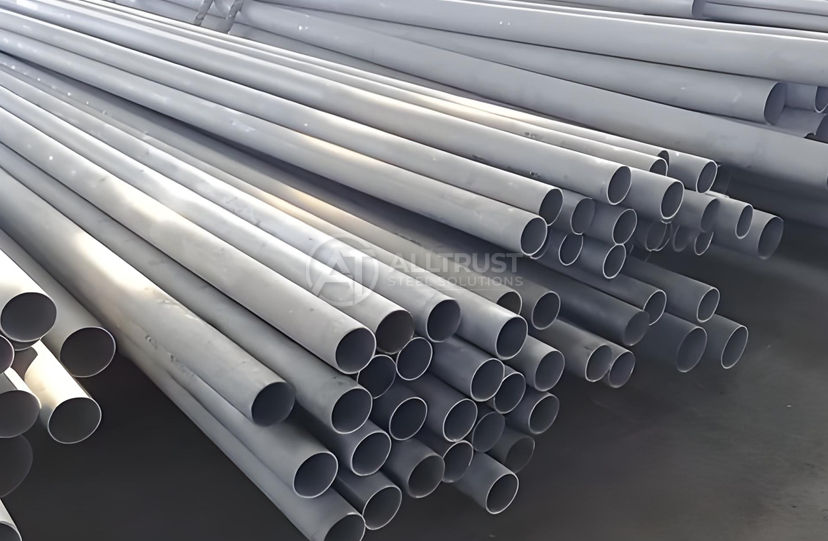

A312 Stainless Steel Pipe – Premium Industrial Piping Solutions for High-Performance Corrosive Applications
HEBEI ALL TRUST STEEL CO., LTD manufactures high-grade a312 stainless steel pipe engineered for demanding industrial environments requiring exceptional corrosion resistance and structural integrity. Our pipes have a yearly manufacturing capacity exceeding 15,000 tons with 100% hydraulic testing processes and dependable performance for outer diameters of up to 1016 mm. All pipes are solution annealed and fully tested to meet the demanding requirements of ASTM A312 / ASME SA312, guaranteeing that they will survive the test of time in petrochemical refineries, power generating plants and chemical processing plants.
All orders include complete material traceability and EN 10204 3.1 certification paperwork.
Understanding A312 Stainless Steel Pipe Standards
ASTM A312 is the worldwide standard specification for seamless and welded austenitic stainless steel pipe intended for high temperature and corrosive fluid service.
This standard covers important technical criteria . This product is manufactured to rigorous ANSI/ASME B36.19 nominal pipe size specs not general purpose tube dimensions. You get uniform pressure ratings and standard fitting compatibility.
The standard includes premium austenitic grades like as TP304, TP304L, TP316 and TP316L. Each grade is solution annealed so that carbides are dissolved and intergranular corrosion is prevented during welding operations.
Core Technical Specifications
| Parameter | Specification Details |
|---|---|
| Manufacturing Standard | ASTM A312 / ASME SA312 / EN 10216-5 |
| Material Grades | TP304 / TP304L / TP316 / TP316L / TP321 / TP347 / Duplex 2205 |
| Production Process | Hot Finished / Cold Drawn / Automatic Longitudinal Welding |
| Outer Diameter Range | 1/4" – 24" (13.7 mm – 609.6 mm) |
| Wall Thickness | SCH 5S / SCH 10S / SCH 40S / SCH 80S / SCH 160 / SCH XXS |
| Standard Length | 5.8 m / 6 m / 11.8 m / 12 m / Custom Cut-to-Length |
| Surface Finish | Solution Annealed & Pickled / Bright Annealed / Satin / Mirror Polished |
| End Configuration | Plain End / Beveled End / Threaded (NPT, BSPT) / Flanged |
| Testing Methods | Hydrostatic / Eddy Current / Ultrasonic / Radiographic |
| Quality Certification | EN 10204 3.1 & 3.2 MTC / ISO 9001:2015 / PED |
Why Choose Our A312 Stainless Steel Pipe
Superior Material Composition
Our product is made of 100% virgin austenitic stainless steel with confirmed chromium (16-30%) and nickel (8-35%) content. Grade TP316L contains molybdenum (2-3%) for superior pitting resistance in chloride conditions.
You receive guaranteed chemical composition without recycled scrap materials or underweight substitutions.
Rigorous Manufacturing Process
Each tube is solution annealed at high temperature and then rapidly quenched in water. This heat treatment totally removes the carbides and restores good corrosion resistance.
Our manufacturing processes adhere to ISO standards and provide exact dimensional tolerances. Wall thickness variations are ±0.05 mm for cold-drawn standards.
Full quality test
We do 100% hydrostatic pressure testing to higher than working pressure standards. Welded constructions may be inspected for subsurface faults using eddy current examination.
Mechanical testing verifies tensile strength ≥515 MPa and yield strength ≥205 MPa. Positive Material Identification (PMI) confirms alloy composition for complete heat number traceability.
Industrial Applications
Petrochemical Processing
In hydrodesulfurization units, our TP316L pipes resist polythionic acid stress corrosion cracking. You operate safely in H2S environments at elevated temperatures where carbon steel fails rapidly.
Power Generation Systems
High-pressure steam piping benefits from our solution-annealed microstructure. The material withstands cyclic thermal stress without creep deformation in baseload power plants.
Chemical Manufacturing
Pharmaceutical batch reactors require Clean-in-Place capability. Our smooth internal bore prevents solvent adherence and biological contamination during processing cycles.
Water Treatment Infrastructure
Municipal desalination facilities depend on chloride resistance. Grade TP316L handles brackish water and seawater exposure without localized pitting corrosion.
Customization Capabilities
You receive flexible manufacturing options tailored to project specifications for a312 stainless steel pipe.
End Preparation Options
- Precision-machined NPT or BSPT threaded ends for field assembly
- ANSI standard beveled ends for butt-weld connections
- Roll-grooved preparations for mechanical coupling systems
- Flanged configurations matching ASME B16.5 dimensions
Surface Finishing Services
- 8K mirror polishing for pharmaceutical applications
- Satin finish for architectural installations
- Electro-polishing for ultra-clean semiconductor systems
- Color PVD coating for identification purposes
Value-Added Processing
Our advanced fabrication capabilities include laser cutting, pipe bending up to custom radius requirements, and fixed-length cutting with ±1 mm accuracy.
Fast Delivery From Large Inventory
We maintain over 5,000 tons of rolling inventory covering standard grades and sizes. Stock orders ship within 3–5 business days.
Custom specifications reach production within 15–20 days. Large engineering projects receive priority scheduling with delivery in 25–30 days.
Mixed container loading accommodates pipes, fittings, flanges, and valves from our complete product portfolio.
Professional Quality Documentation
Every shipment includes comprehensive certification packages. You receive original EN 10204 3.1 Mill Test Certificates with heat number traceability.
PMI reports document chemical composition verification. Mechanical test results confirm tensile strength, yield strength, and elongation values.
Third-party inspection by SGS, TÜV, Bureau Veritas, or Lloyd's Register is available upon request. Our facility welcomes witness testing during production.
FAQ
Q：What precise defensive properties enable this product to endure long-term industrial exposure?
A：Formulated from premium austenitic raw materials, this pipe builds a dense, self-healing chromium-oxide passive film that provides exceptional anti-rust endurance and handles heavy fluid pressure limits securely.
Q：Does this product retain reliable load-bearing metrics when exposed to fluctuating thermal ranges?
A：The high-grade alloy configuration resists rapid thermal degradation and creep strain, sustaining its core mechanical load ratings during continuous exposure to elevated utility temperatures.
Q：What quality control steps ensure that the chemical composition matches the required specification limits?
A：We conduct mandatory 100% Positive Material Identification (PMI) alloy validation alongside spectrographic ladle analysis to verify that all alloying elements are perfectly distributed.
Q：Can this stainless steel pipe series be customized with standard threading configurations for rapid field joining?
A：Yes, we provide precision-machined threaded ends matching NPT or BSPT taper standards, roll-grooved end preparations for mechanical couplings, and ANSI butt-weld bevels.
Q：What independent third-party inspection certifications are accepted for this stainless steel piping line?
A：Our manufacturing facility is fully ISO 9001:2015 certified and facilitates comprehensive witness audits by international bodies including SGS, TÜV, Lloyd's Register, and Bureau Veritas (BV).
Contact Us
Contact our engineering team at info@hballtrust.com for technical specifications, quotations, and material selection guidance tailored to your application requirements for a312 stainless steel pipe.
