304 Welded Pipe Supplier for Architectural, Structural, and Equipment Manufacturing Applications

When sourcing a reliable 304 welded pipe supplier, procurement managers in machinery, chemical equipment, and municipal infrastructure sectors need more than a competitive price — they need verified material quality, traceable certifications, and dependable lead times. Grade 304 (UNS S30400) stainless steel welded pipe, produced to ASTM A312 and ASME SA312 standards, serves as the standard choice across architectural frameworks, structural assemblies, and process equipment. At Hebei All Trust Steel Co., Ltd, we supply ASTM-compliant welded stainless pipe backed by EN 10204 3.1 Mill Test Certificates, third-party inspection acceptance, and flexible order quantities designed for medium-batch buyers.

Understanding 304 Welded Pipe: Properties and Specifications

What Is 304 Welded Pipe?

To make a 304 welded pipe, luxury 304-grade stainless steel strips are bent into the shape of a tube, and then the longitudinal seam is joined using automatic TIG, Plasma, or Laser welding. When compared to seamless pipe, welded pipe has better wall thickness consistency and tighter dimensional concentricity, which are important for both structural and ornamental uses. It is made up of about 18% chromium and 8% nickel, which together form a stable passive oxide layer that doesn't oxidize in normal air and water conditions.

Key Mechanical and Chemical Properties

As per ASTM A312, the base metal has a minimum yield strength of 205 MPa and a tensile strength of 515 MPa. It has a density of 7.93 g/cm³ and a freezing point range of 1,400–1,450°C, so it works well in a wide range of temperatures, from very cold environments to mild heat. The heat-affected zone (HAZ) is fully recrystallized after full post-weld solution heating. This gets rid of any remaining stress and brings the weld joint efficiency factor back to 1.0, which means the seam is as strong as the base metal.

Standard Specifications and Size Range

Our welded stainless tube program includes tubes with outside diameters from ½" to 48" (DN15–DN1200) and wall schedules from SCH 5S to SCH 80S (0.5 mm to 30 mm). Lengths of 5.8 m, 6 m, 11.8 m, 12 m, and custom-cut sizes are all available. There are different ways to smooth the surface, such as solution-annealed and pickled, bright-annealed (BA), manually polished, and internally bead-removed. There are different types of ends, such as plain end (PE) and angled end (BE), which allow for direct field installation.

Comparing 304 Welded Pipe with Alternative Materials

A lot of the time, procurement experts want to know how austenitic 304 compares to other pipe materials. The answer relies on the project's service environment, funds, and needs over its lifecycle.

304 vs. 316L Stainless Steel

Because it has 2–3% molybdenum, Grade 316L is the best choice for areas with a lot of salt or that are near the ocean. 304 welded pipe 304, on the other hand, protects against corrosion just as well as 316L in freshwater systems, municipal drainage, food processing lines, and general structural uses where chloride exposure is limited. It also costs 15–20% less per ton than 316L, according to current market data.

304 Welded vs. Seamless Pipe

Because seamless pipe doesn't have a lengthwise weld line, it has traditionally been used for high-pressure applications. But when made according to ASTM A312 with full annealing and radiographic weld inspection, the welded version can handle the same amount of pressure. When used for things with a diameter of more than 6 inches, welded pipe usually gives better roundness, faster wait times, and lower costs.

Stainless Steel vs. Carbon Steel

Without expensive protection systems, carbon steel corrodes quickly in places that treat water, work with chemicals, or handle food. A 304 stainless steel pipe doesn't need a protective coating, lasts longer (often over 20 years in light work), and costs a lot less to maintain over time. OEM manufacturers that want to sell their products in Southeast Asia and the Middle East should choose stainless steel from the start to avoid warranty claims and failures in the field.

Procurement Guide: How to Choose and Buy 304 Welded Pipe?

It's not enough to just compare prices when you need to buy welded stainless steel pipe for a factory line or an infrastructure project. Here are the main things that set a reliable purchase apart from an expensive one.

Before you look at a quote, make sure the seller can meet the following basic standards for documentation and service:

• EN 10204 3.1 Mill Test Certificate (MTC): Confirms actual chemical composition and mechanical test results per the specific heat number, traceable to the producing mill.
• ASTM A312 dimensional compliance: Wall thickness tolerance within the negative deviation limits specified by the standard, protecting against under-wall pipe on structural applications.
• Third-party inspection acceptance: Suppliers willing to accommodate SGS, BV, TÜV, DNV, or ABS on-site inspection demonstrate transparent production quality.
• Flexible MOQ: Suppliers offering low minimum order quantities for trial batches allow procurement teams to qualify material before committing to volume orders.
• Sea-freight packaging: Secure hexagonal bundle packing wrapped in waterproof plastic bags with plastic end caps and steel strapping prevents transit scratching, surface rust, and dent damage.

Buying managers often complain about five things: the risk of material substitution, over-tolerance wall deviation, inspection rejection, capital being stuck in big MOQs, and damage in transit when it arrives. These five factors directly address these problems.

Once the paperwork and ability to inspect are confirmed, the lead time for 304 welded pipe should be looked at. All Trust ships stock items in 3–5 days. Custom items usually get sent out in 15 to 20 days. Priority production spots can cut the time it takes to make something by up to 35%, which is helpful when urgent orders need to be filled quickly.

Why Choose a Trusted 304 Welded Pipe Supplier for Your Projects?

Certified Quality from Source to Shipment

Hebei All Trust Steel has a four-step quality control method for all of its welded stainless steel pipes: spectrographic analysis of the raw materials, production tracking with real-time dimensional checks, independent NDT testing, and a final review of all the paperwork. We issue EN 10204 3.1 and 3.2 MTCs, PMI analysis reports, and certification for ISO 9001:2015. All of the 304 welded pipe we sell is made from 100% new stainless steel. It doesn't come from recycled scrap or lower-quality Cr/Ni steel.

Non-Destructive Testing on Every Order

All of our welded seams are tested with 100% Eddy Current. Radiographic Testing (RT/X-ray), Hydrostatic Pressure Testing, and Ultrasonic Testing (UT) are also available upon request. Tensile, hardness, flattening, and reverse flattening tests are all part of mechanical verification. Before any cargo leaves the warehouse, PMI analysis checks the actual alloy content against the grade specification.

Long-Term Supply Partnership

We have over 5,000 tons of rolling stock in stock in grades 304, 304L, 316, and 316L. It is stored near Tianjin, Shanghai, Qingdao, and Shenzhen. Strategic partnerships with more than 15 ISO-certified mills make sure that supply doesn't stop, even when demand is high. With more than 15 years of experience in the field and a focused expert team, we help buyers choose materials, look over CAD drawings, and plan how to load containers.

Conclusion

Choosing the correct stainless steel 304 welded pipe and provider has a direct impact on the quality of production, the compliance of the project, and the control of costs. For the best price, Grade 304 (UNS S30400) welded pipe made to ASTM A312 standards with full annealing, NDT testing, and traceable MTCs can be used for a lot of different architectural, structural, and equipment manufacturing needs. Hebei All Trust Steel Co., Ltd offers guaranteed material quality, clear paperwork, third-party inspection support, and reliable delivery times to purchasing teams in East China, South China, and export markets around the world.

FAQ

Does 304 welded pipe meet ASTM A312 requirements?

Yes. Our welded stainless steel pipe is produced strictly to ASTM A312 / ASME SA312, ASTM A358, and EN 10217-7. Each pipe undergoes solution annealing, NDT testing, and dimensional inspection before MTC issuance. The weld joint efficiency is rated at 1.0 under full inspection protocols, making it suitable for pressure-rated fluid service.

What surface finishes are available?

We offer solution annealed and pickled, bright annealed (BA), mechanically polished, and internal bead-removed finishes. For architectural and decorative piping, polished and BA finishes are standard. For process equipment and water treatment, pickled or bead-removed interiors are preferred.

Can you accommodate small trial orders?

We accept flexible low MOQ for trial and prototype orders. This applies to both standard dimensions and custom-cut lengths. Contact our team at info@hballtrust.com with your specification sheet for a fast quotation.

How do you prevent transit damage on export shipments?

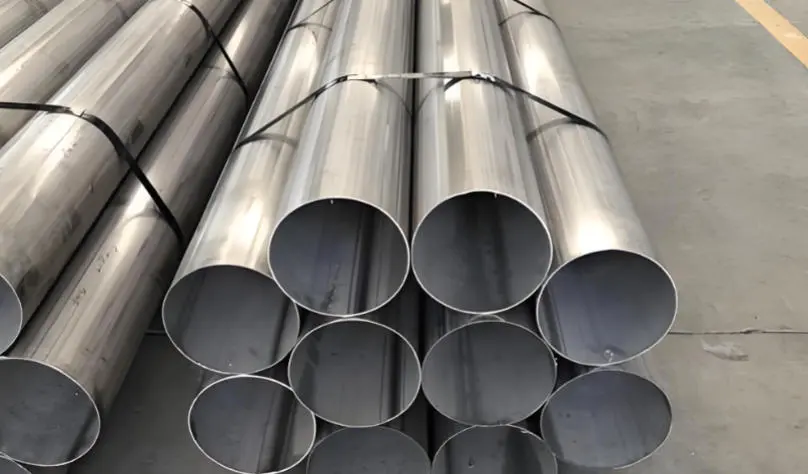

All export orders ship in hexagonal bundle packing with waterproof plastic outer wrapping, plastic end caps on each pipe, steel band strapping, and fumigation-free wooden cases where required. Heavy-diameter pipe sections ship with heavy lifting slings to prevent handling deformation.

What third-party inspections do you accept?

We accept and actively support SGS, BV, TÜV, DNV, and ABS third-party inspections at any stage of production or pre-shipment.

Get a Quote from All Trust — Your Certified 304 Welded Pipe Supplier

All Trust offers 304 welded pipe that meets ASTM A312 standards. It comes with full EN 10204 3.1 MTC documentation, 100% Eddy Current testing, and optional RT weld testing. The minimum order quantity (MOQ) for sample orders is also variable. Our team responds within an hour, whether you need standard stock sizes or stainless welded pipe made to your exact measurements. To get a quote on your specifications, email us at info@hballtrust.com or go to hballtrust.com right now.

References

1. ASTM International. ASTM A312/A312M: Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes. 2022.

2. American Society of Mechanical Engineers. ASME SA-312: Specification for Seamless, Welded, and Heavily Cold Worked Stainless Steel Pipes. 2021.

3. European Committee for Standardization. EN 10217-7: Welded Steel Tubes for Pressure Purposes — Stainless Steel Tubes. 2019.

4. Davis, J.R. Stainless Steels. ASM International, 1994.

5. Lula, R.A. Stainless Steel. American Society for Metals, 1986.

6. TWI Global. Welding of Austenitic Stainless Steel — Technical Knowledge Series. The Welding Institute, 2020.
