Can 321 Seamless Pipe Maintain Performance in High-Temperature Refinery Piping?

321 Seamless Pipe can absolutely maintain performance in high-temperature refinery piping. Manufactured from UNS S32100 titanium-stabilized austenitic stainless steel, this grade delivers complete resistance to intergranular corrosion within continuous service temperatures of 427°C to 816°C (800°F to 1500°F). Unlike standard 304 stainless steel, the titanium addition in grade 321 prevents chromium carbide precipitation at grain boundaries during prolonged thermal exposure. For procurement directors and process engineers evaluating high-temperature piping solutions, this material characteristic directly addresses the most common failure mode in refinery service environments.

Understanding 321 Seamless Pipe and Its Properties

ASTM A312, ASTM A213, and ASME SA312 standards are used to make Grade 321 (UNS S32100 / 1.4541), an austenitic stainless steel supported with titanium. Titanium levels are kept at a minimum of 5×(C+N), which holds carbon atoms together before chromium levels drop at grain boundaries. In thermal service, this one choice about the makeup sets 321 apart from other austenitic types.

Titanium Stabilization and Its Mechanical Impact

Titanium stabilization isn't just a way to stop rust; it also keeps the pipe's structure intact even when temperatures change over and over again. The metal matrix stays stable even after thousands of hours of use because the stabilization heat treatment that is done after solution annealing fixes the titanium carbides. Tensile strength must be at least 515 MPa, and yield strength must be at least 205 MPa.

Manufacturing Process and Dimensional Precision

Advanced multi-pass precision cold drawing is used to make pipes. This method ensures that the walls are perfectly straight and that the sizes are kept within tight tolerances. The outside diameters that are available are between 1/4" and 24" (13.7 mm and 609.6 mm), and they cover schedules from SCH 5S to SCH XXS. Wall thicknesses range from 0.5 mm to 50 mm, and lengths are typically 5.8 m, 6 m, 11.8 m, and 12 m. Lengths can also be cut to order based on the needs of the project.

Surface Treatment and Contamination Control

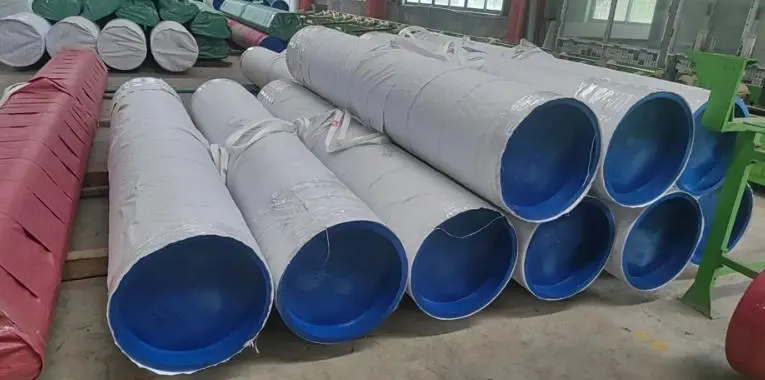

The industrial pickled and passivated surface finish gets rid of iron contamination and oxide scale. This restores the passive chromium oxide layer that makes stainless steel resistant to corrosion. You can also get finishes that are bright annealed (BA) or manually polished. To keep the pipes clean during shipping, they are sealed with plastic end caps and packed in waterproof woven bags or reinforced open steel frames.

Performance Analysis: Grade 321 in High-Temperature Refinery Piping

Pipes in refineries are exposed to sulfur compounds, chlorides, hydrogen sulfide, and changing temperatures. The question is not whether a pipe doesn't rust at room temperature, but whether it doesn't become sensitive after years of work at high temperatures.

Comparison with Grade 304 and 316

Standard 304 stainless steel becomes sensitive between 427°C and 816°C, which means it can be attacked between its grains. Grade 316 has molybdenum added to make it more resistant to pitting, but it doesn't have titanium stabilization, so it is still subject to the same carbide precipitation mechanism when heated for a long time. This is not allowed at all in 321 Seamless Pipe. Its titanium content binds carbon more strongly than other elements, which keeps chromium in solid solution and the grain boundaries intact.

Continuous vs. Intermittent Temperature Limits

Grade 321 stays resistant to rust up to 816°C when it is used continuously. The operational ceiling for oxidation resistance in intermittent service goes up to about 900°C. When process engineers choose wall thickness and plan for furnace tube repairs or superheater lines in boiler overhauls, they should make this clear so that the parts don't break down too quickly.

Seamless vs. Welded Construction in Refinery Service

The horizontal weld seam is not present in the seamless manufacturing method, which gets rid of a known stress concentration point. Over time, soldered pipe seams can develop tiny cracks when they are put under a lot of pressure inside and go through changes in temperature. When you use seamless construction, the wall thickness is evenly spread out, the pressure rating is higher, and there is less chance of stress corrosion cracking. This is a big benefit for reactor tubes and high-pressure steam uses.

Application Scenarios for 321 Stainless Steel Pipe in Refinery Systems

The grade's thermal and corrosion performance profile matches a number of important refinery parts. When this material is used in the following main ways, it provides measurable practical value:

• Furnace tubes and heating element tubing: Continuous exposure to combustion gases and radiant heat demands a material that resists oxidation, scaling, and maintains wall strength over 10+ year service cycles. The titanium-stabilized matrix handles this without requiring scheduled replacement during normal operation.
• Heat exchangers and reactor tubes: Process fluids carrying sulfur compounds at elevated temperatures create conditions where untreated austenitic grades sensitize rapidly. Grade 321 tubing, confirmed by ASTM A262 Practice E intergranular corrosion testing, provides documented assurance that the material will not fail prematurely in these environments.
• High-pressure steam pipelines and boiler enclosures: Power plant boiler overhauls and CHP unit piping systems demand ASME SA312-compliant material with full mill test certificates. The creep resistance of grade 321 at operating temperatures above 500°C supports pressure boundary integrity over extended service intervals.

All three of these uses have one thing in common: the pipe has to work without any unplanned problems. A broken tube in a power plant or refinery burner costs a lot more than the difference in price between types of material.

Procurement Insights: Sourcing Titanium-Stabilized Pipe for Refinery Projects

There's more to choosing the right 321 Seamless Pipe provider than just looking at prices. Large projects like refineries or power plants usually take three to six months to buy, and during the technical bid evaluation, material certification requirements can't be changed.

Certifications and Testing Documentation

As a minimum, buyers should ask for EN 10204 3.1 mill test certificates, ASTM A262 Practice E intergranular rust test reports, PMI analysis results, and hydraulic test records for 321 Seamless Pipe. Third-party inspection by SGS, BV, TÜV, DNV, or ABS is possible, and for large orders, this should be requested. A seller with ISO 9001:2015, CE, and PED certifications works within a controlled quality system.

Delivery Capability and Stock Availability

Schedules for projects rarely allow for major delays. If a supplier has a large rolling inventory of standard schedules and common diameters, they can load containers right away. This cuts lead times for stock orders to 3 to 5 days. It usually takes 15 to 30 days for custom orders and big technical jobs. Ensuring that warehouses are close to major export ports like Tianjin, Shanghai, and Qingdao lowers the shipping risk for buyers from other countries.

Long-Term Supply Commitment

Power plant and refinery projects have working lifecycles of 10 years or more. An expensive supplier that can keep material grades, heat traceability, and test results the same across many order batches and many years is worth the extra money. Instability in quality systems or where to get raw materials costs a project a lot more in the long run than it saves in the beginning.

Why Grade 321 Is a Rational Choice for High-Temperature Refinery Applications?

There is a strong technical case for using titanium-stabilized stainless steel in the pipes of refineries. The material fixes a known failure mode called sensitization-induced intergranular corrosion that happens with common austenitic grades at the temperature range where most refining operations work. It has a lower risk of catastrophic tube failure, longer service intervals, and less unplanned maintenance, which all add up to a lower lifecycle cost.

Lifecycle Cost vs. Initial Material Cost

If the buying head only looks at the unit price of grade 321 and grade 304, they are likely to choose the wrong material. When a tube breaks, it often costs more to fix than the difference in prices across the whole system of pipes. This includes stopping production, getting replacement parts quickly, and paying repair workers. It saves more money in the long run to specify the right material during the design stage.

Compliance Alignment with ASME and PED Requirements

Projects for refineries and power plants in regulated markets need to show that they follow the ASME Section II material specifications and, if necessary, the EU Pressure Equipment Directive. As long as it comes with the right approval package, Grade 321 under ASME SA312 or SA213 meets both standards.

Operational Assurance Through Testing

Before being shipped, every batch of 321 Seamless Pipe made by a responsible company should pass hydrostatic testing, eddy current testing, ultrasonic testing, and intergranular corrosion testing. These quality steps are required before material can be put into a safety-critical pressure system. They are not extras.

Conclusion

Grade 321 Seamless Pipe titanium-stabilized stainless steel pipe is a technically sound material selection for high-temperature refinery and power plant piping applications. It addresses the primary failure mechanism of sensitization, maintains mechanical integrity through the 427°C–816°C service range, and delivers lifecycle cost advantages that justify its specification. Procurement teams should prioritize suppliers with full certification packages, large inventory capacity, and demonstrated long-term supply capability when sourcing for projects with extended operational lifecycles.

FAQ

Why does grade 321 outperform 304 in high-temperature service?

Grade 304 undergoes sensitization when held in the 427°C–816°C range, depleting chromium at grain boundaries and creating pathways for intergranular corrosion. Grade 321 adds titanium, which preferentially binds carbon and prevents this depletion. The result is a material that retains its corrosion resistance after prolonged thermal exposure where 304 would fail.

What corrosion test confirms intergranular corrosion resistance?

ASTM A262 Practice E is the standard test method for evaluating susceptibility to intergranular corrosion in austenitic stainless steel. Suppliers should provide this test report as part of the material certification package for every production batch.

What delivery timelines should I expect for large-volume orders?

Stock orders in standard schedules typically ship within 3 to 5 days. Standard custom orders require 15 to 20 days. Large engineering project orders generally need 25 to 30 days, with priority production capacity available to reduce this timeline by up to 35%.

Can 321 pipe be used in both power plant boilers and refinery furnaces?

Yes. The material is specified in both ASTM A213 for boiler and superheater tubes and ASTM A312 for general high-temperature pressure piping, covering applications in power plant boilers, refinery heating furnaces, CHP units, and chemical cracking furnaces.

What third-party inspections are available?

SGS, BV, TÜV, DNV, and ABS third-party inspections are available and welcomed. Buyers can specify their preferred inspection agency at the contract stage.

Source Grade 321 Pipe from All Trust — Certified, Traceable, and Ready to Ship

Power plant, refinery, and industrial buying teams can get ASTM A312 / ASME SA312 compliant 321 Seamless Pipe from Hebei All Trust Steel Co., Ltd. All Trust is a reliable company that has been making 321 Seamless Pipes for over 15 years. They offer full EN 10204 3.1/3.2 mill test certificates, ASTM A262 Practice E test reports, and third-party inspection support. A large moving store makes it possible to load containers quickly. To get a material certification package or project quote, email our technical team at info@hballtrust.com.

References

1. ASTM International. ASTM A312/A312M: Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes. ASTM International, 2022.

2. ASTM International. ASTM A262: Standard Practices for Detecting Susceptibility to Intergranular Attack in Austenitic Stainless Steels. ASTM International, 2021.

3. ASME Boiler and Pressure Vessel Code. Section II, Part A: Ferrous Material Specifications, SA-312. American Society of Mechanical Engineers, 2023.

4. Lippold, J. C., & Kotecki, D. J. Welding Metallurgy and Weldability of Stainless Steels. Wiley-Interscience, 2005.

5. Davis, J. R. (Ed.). Stainless Steels. ASM International, 1994.

6. Sedriks, A. J. Corrosion of Stainless Steels. 2nd ed. Wiley-Interscience, 1996.
