Where Can 304 Welded Pipe Reduce Fabrication Costs in Large Industrial Piping Projects?

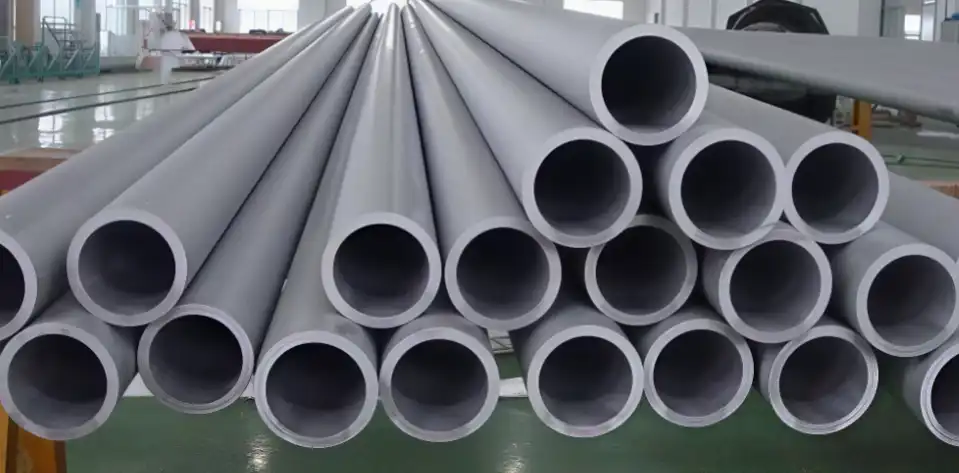

304 welded pipe reduces fabrication costs in large industrial piping projects across three primary areas: material procurement, shop fabrication, and long-term maintenance. Manufactured from UNS S30400 austenitic stainless steel through automated TIG, plasma, or laser longitudinal welding per ASTM A312, it delivers consistent wall thickness from SCH 5S through SCH 80S and outside diameters from ½" up to 48". Its lower raw material cost versus seamless pipe, faster weld-fit-up time on the shop floor, and extended service life in water treatment, chemical processing, and municipal drainage systems all contribute to measurable lifecycle savings.

Understanding 304 Welded Pipe: Composition, Properties, and Advantages

Chemical Composition and Mechanical Baseline

About 18% of Grade 304 (UNS S30400 / EN 1.4301) is chromium, and 8% is nickel. This mix makes a stable passive oxide layer that doesn't react with oxygen or strong chemicals. According to ASTM A312, the minimum yield strength is 205 MPa and the minimum tensile strength is 515 MPa. This gives engineers a stable structure to work from when they are planning pipe schedules for pressure service.

Corrosion Resistance Versus Carbon and Galvanized Steel

In water service, carbon steel corrodes at a rate of 0.1 to 0.5 mm per year, which means it needs to be replaced often. In three to five years, alkaline or acidic process streams will wear off the zinc layer on galvanized pipe. A 304 stainless welding tube, on the other hand, doesn't rust in most situations across a pH range of about 4 to 13. This means that water supply networks and food-grade process lines don't have to spend as much on yearly inspections and repairs.

Fabrication Advantages on the Shop Floor

Post-weld solution annealing recrystallizes the heat-affected area, making the whole weld seam more flexible and resistant to corrosion. For smooth flow in clean lines, the internal weld bead can be taken off straight (bead-conditioned finish). Field fit-up time is cut down by the fact that you can choose between plain end (PE) or beveled end (BE). Because of these features, each weld joint takes less time to make than with duplex or high-alloy grades, which are harder to shape.

Cost Reduction Areas in Large Industrial Projects Using 304 Welded Pipe

Lower Material Procurement Cost

It is made from flat-rolled strip stock that is shaped and seam-welded. This method uses less energy and fewer machining steps than hot extrusion of seamless pipe. Pricing information from the industry shows that welded pipe with a diameter of more than DN200 always costs 20–35% less per meter than seamless pipe of the same diameter. That difference is important for the price of a project that needs several hundred meters of process header.

Reduced Fabrication Labor and Rework

It is possible for field fit-up gaps to stay within acceptable limits because automated longitudinal welding produces tight dimensional tolerances, such as consistent OD concentricity and line roundness across standard lengths of 5.8 m, 6 m, 11.8 m, and 12 m. Less grinding and filler metal are needed for each joint when the fit is tighter. When there are a lot of field welds on a job, 304 welded pipe saves a lot of time and effort.

Lower Lifecycle Maintenance Expenses

The European Stainless Steel Association (EURO INOX) says that a welded stainless steel pipe system in a city's water system can last 30 to 50 years with little maintenance. When compared to carbon steel systems that need to be repainted and sections replaced every so often, stainless steel systems often have a lower total cost of ownership over a 20-year project life, even though they cost more per unit at first. Less downtime also protects production income.

Practical Comparisons: Selecting 304 Welded Pipe Over Other Pipe Types

304 vs. 316L and Higher-Alloy Grades

The addition of 2–3% molybdenum to Grade 316L makes it more resistant to chloride in acidic or saltwater settings. However, molybdenum is much more expensive than other metals. The price per kilogram of Grade 304 is noticeably lower than other grades. It can be used for general machinery cooling loops, city drainage, low-pressure steam distribution, and food-grade transportation where chloride exposure is limited. Choosing 316L when 304 is technically fine adds extra cost to the purchase.

304 Welded vs. Carbon Steel and Galvanized Pipe

Protective coatings, regular inspections, and repair when rust gets worse are needed for carbon steel. In food and drug uses, iron pollution from pipe walls that have corroded is not acceptable because it is not clean. Field welding is not safe for galvanized pipe because it releases zinc fumes. All three problems can't happen with a 304 stainless welded tube, which makes it the best choice for companies that make chemical equipment and work on public water systems and need to keep the quality high without having to pay a lot for maintenance.

Welded vs. Seamless: When Welded Wins

For high-pressure and high-temperature service above Class 600 grades, seamless pipe is better. Welded pipe with 100% eddy current testing and optional radiographic testing (RT/X-ray) on the weld seam gives the same level of integrity at a lower cost for most industrial piping needs, such as water treatment at less than 40 bar, low-pressure steam, structural supports, and drainage. The ASTM A312 standard says that welded pipe can be used in these situations, and when the pipe is fully X-rayed, the weld joint efficiency factor is set at 1.

How Manufacturing Processes Influence Cost and Quality?

Precision Welding Technology

TIG, plasma, and laser longitudinal welding from calibrated premium steel strips make it possible to keep wall thickness tolerances tight across the whole schedule range (SCH 5S to SCH 80S, 0.5 mm to 30 mm wall). Laser welding creates a small heat-affected zone, which lowers the amount of material damage and time needed to fix it after the welding process. Because the OD stays the same from ¼" to 48" (DN15 to DN1200), common fittings will fit properly with 304 welded pipe without having to be machined.

Quality Testing Protocols That Prevent Rework

Before being shipped, every pipe goes through 100% eddy current testing and hydraulic testing. Ultrasonic testing (UT) and radiographic testing (RT/X-ray) can be used as options to make sure the integrity of the internal weld for service under high pressure. Chemical tests include PMI analysis to confirm the amount of Cr and Ni present, and mechanical tests include tensile, flattening, reverse flattening, and hardness tests. These rules make sure that flaws are found at the mill instead of on the job site, where they cost three to five times more to fix.

Certification and Traceability as Cost Controls

Material substitution disputes can't happen if each pipe has an EN 10204 3.1 Mill Test Certificate (MTC) that can be traced back to its original steel heat. For export sales that need proof in writing, a third-party review by SGS, BV, TUV, DNV, or ABS completes the process. Certifications like ISO 9001:2015, CE, and PED help with buying compliance without making the buyer pay more for audits.

Choosing the Right Supplier to Maximize Cost Savings

Key Supplier Selection Criteria

The right supplier offers both high-quality goods and a range of delivery options. Here are the real factors that affect how much a project costs:

• MTC completeness: EN 10204 3.1 or 3.2 certification with full heat traceability protects against substandard Cr/Ni content that causes premature corrosion failures.

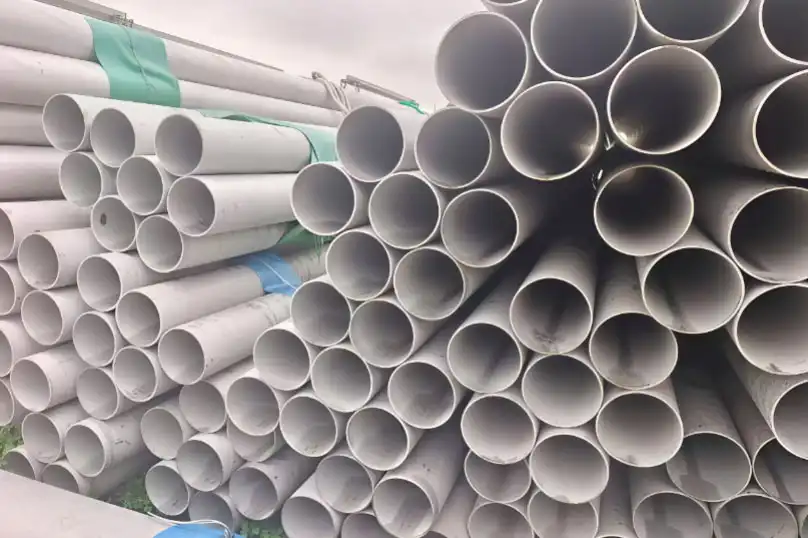

• Stock depth and lead time: A supplier holding over 5,000 tons of rolling inventory in 304/316L grades can fulfill stock orders within 3–5 days and standard custom orders within 15–20 days, preventing project delays.
• Flexible MOQ: Low minimum order quantities allow procurement teams to test material quality on small-batch prototypes before committing to full project volumes, protecting working capital.

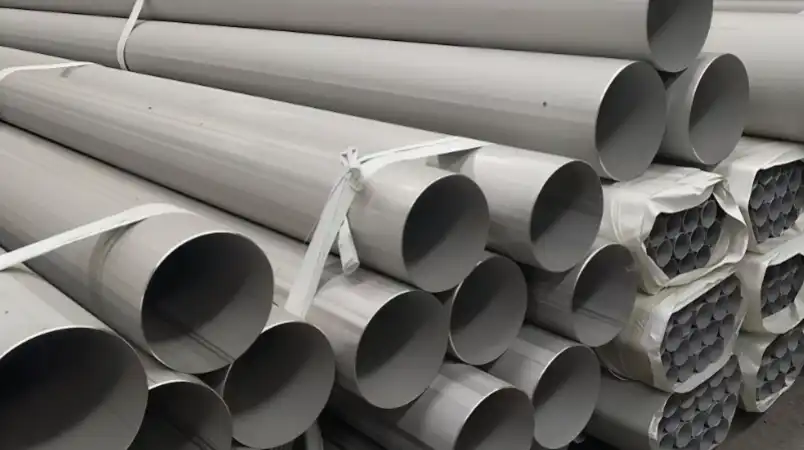

• Packaging quality: Hexagonal bundle packing, waterproof wrapping bags, plastic end caps, and heavy lifting slings protect pipe surfaces during sea freight, eliminating transit damage claims that erode margins.

These factors are important because a slightly lower unit price from a supplier that can't be trusted often costs more in extra work, delays, and settlement of disputes than a slightly higher price from a supplier that can be trusted.

Conclusion

304 welded pipe stainless steel pipe saves money at every stage of a big industrial plumbing job, from buying the pipe to putting it together and running it for a long time. Its 18/8 chromium-nickel composition, along with precision automated welding and post-weld solution annealing according to ASTM A312, makes a product that lasts longer than carbon steel and costs less than seamless pipe to buy. Choosing the right welded pipe grade and supplier lowers the total cost of a project for medium-sized manufacturers and EPC contractors who need certified quality, fast delivery, and the ability to change the number of orders they place.

FAQ

Is 304 welded pipe suitable for drinking water applications?

It can be used for supply headers and distribution mains in many local waterworks standards in the US and around the world.

What wall thickness schedules are available?

Standard schedules cover wall thicknesses from about 0.5 mm to 30 mm and are called SCH 5S, SCH 10S, SCH 40S, and SCH 80S. For project-specific needs, lengths can be cut to order, and wall thicknesses are not standard.

How do I verify that the material is genuine 304 grade?

Along with the EN 10204 3.1 MTC, you should ask for a PMI (Positive Material Identification) report. PMI uses optical emission spectroscopy to make sure that the actual amounts of Cr and Ni meet the requirements for grade 304.

Can welded pipe be used in pressure service?

According to ASTM A312, a fully radiographed welded pipe has a joint efficiency factor of 1.0, which means it can be used for pressure service as long as it doesn't go over the design limits of the relevant piping code. Talk to your project engineer about the pressure class every time.

Get a Quote from All Trust — Your 304 Welded Pipe Supplier

As of now, Hebei All Trust Steel has more than 5,000 tons of rolling stock in grades 304 and 316L. For stock sales, 304 welded pipe ships from major Chinese ports within 3–5 days, and every package comes with an EN 10204 3.1 MTC. We let SGS or BV do third-party inspections, have a flexible low MOQ for trial orders, and can help you combine the whole project. Please email our team at info@hballtrust.com right away to talk about your plumbing needs and get a price quote on certified 304 welded pipe for your next job.

References

1. ASTM International. ASTM A312/A312M: Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes. ASTM International, 2022.

2. EURO INOX (European Stainless Steel Association). Stainless Steel in Water Technology. EURO INOX, 2018.

3. Llewellyn, D.T., and R.C. Hudd. Steels: Metallurgy and Applications. Butterworth-Heinemann, 1998.

4. ASM International. ASM Handbook, Volume 13A: Corrosion: Fundamentals, Testing, and Protection. ASM International, 2003.

5. McGuire, Michael F. Stainless Steels for Design Engineers. ASM International, 2008.

6. American Society of Mechanical Engineers. ASME B31.3: Process Piping Code. ASME, 2022.
