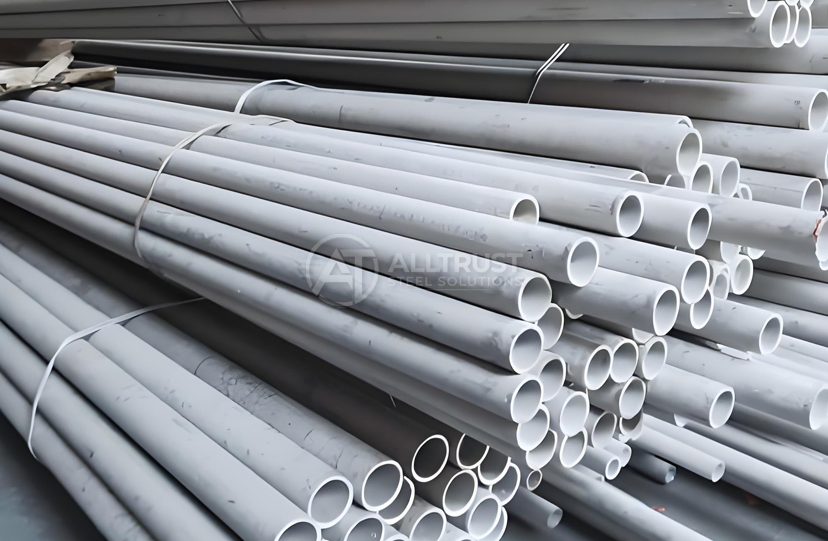

astm a269 seamless tube
2. Standard: ASTM A269 / ASME SA269, standard specification for nominal-wall tubing for general service
3. Process: 100% solid-billet cold drawn or cold rolled seamless, eliminating any welding seam failure risks
4. Size Range: Outer Diameter 1/4" to 5" (6.35mm to 127mm), with strict tolerances on concentricity and wall gauge
5. Heat Treatment: Homogeneous solution annealing in a protective gas atmosphere to restore material balance and softness
6. Surface Finish: High-purity bright annealed (BA) mirror finish, or smooth uniformly pickled and passivated
7. Application: High-pressure instrumentation lines, hydraulic systems, pneumatic controls, and chemical sampling loops
8. Service Advantage: 100% eddy current and hydrostatic testing, mill test certificates (MTC 3.1) provided with shipment
9. Packaging: Secure international bundle packing wrapped in waterproof canvas or nested in solid plywood crates
10. Key Advantage: Complete elimination of weld leakage paths, offering superb bending, flaring, and coiling agility
ASTM A269 Seamless Tube | Premium Instrumentation Tubing Solutions for High-Pressure Industrial Applications
Hebei All Trust Steel Co., Ltd manufactures precision-engineered astm a269 seamless tube with annual production capacity exceeding 15,000 tons and 100% hydraulic testing compliance. Our cold-drawn seamless tubing from solid billets offers excellent corrosion resistance for grades TP304, TP304L, TP316 and TP316L, in diameters 1/4" to 5" OD. All tubes are eddy current scanned and hydrostatically pressure tested to assure fault free operation in critical instruments, hydraulic control systems and chemical processing settings. EN 10204 3.1 Mill Test Certificates and tolerance accuracy up to ±0.05 mm remove weld-seam failure hazards in our manufacture, while ensuring precise ASTM A269/ASME SA269 compliance in every shipment.
What Makes ASTM A269 Seamless Tube the Gold Standard for Industrial Piping
The product is a stainless steel tube of high accuracy made using modern hot piercing and multi-pass cold drawing methods. This seamless design provides improved structural stability without longitudinal weld seams, unlike welded alternatives.
Your operations benefit from the removal of fusion-line flaws. The metallurgical structure is homogenous and avoids premature failure in aggressive media transport and high pressure instrumentation systems.
This grade is chosen for its proven performance in industries where dependable fluid containment is required. Seamless construction is crucial for chemical processing facilities, pharmaceutical manufacturers and aerospace suppliers where catastrophic leakage is not an option in mission critical applications.
The brilliant annealed finish gives optimal cleanliness for sanitary systems. You obtain mirror-smooth interior walls that resist bacterial adherence and ease CIP processes in food-grade installations.
Technical Specifications & Dimensional Parameters
| Parameter | Specification Details |
|---|---|
| Manufacturing Standard | ASTM A269 / ASME SA269 / EN 10216-5 |
| Product Classification | Seamless Stainless Steel Instrumentation Tubing |
| Material Grades | TP304 / TP304L / TP316 / TP316L / TP321 / TP347 / TP310S |
| Production Process | Cold Drawn / Cold Rolled / Precision Seamless |
| Outer Diameter Range | 1/16" - 5" (1.59 mm - 127 mm) |
| Wall Thickness | 0.010" - 0.200" (0.25 mm - 5.08 mm) |
| Standard Lengths | 5.8 m / 6 m / 11.8 m / 12 m / Custom Cut |
| Surface Treatment | Bright Annealed (BA) / Pickled & Passivated / Mirror Polished |
| End Configuration | Plain End / Square Cut / Burr-Free Machined |
| Tensile Strength | Min. 75 ksi (515 MPa) |
| Yield Strength | Min. 30 ksi (205 MPa) |
| Hardness Limit | Max. 90 HRB / 200 HBW |
| Testing Methods | Eddy Current / Ultrasonic / Hydrostatic / PMI Analysis |
| Quality Certificates | EN 10204 3.1 & 3.2 MTC / ISO 9001:2015 |
| Packaging Options | Fumigated Plywood Cases / Hexagonal Bundles / Waterproof Wrapping |
Superior Manufacturing Quality & Testing Protocols
Four-stage quality verification within our product manufacture guaranties constant performance. Spectrographic examination provides accurate concentration of chromium and nickel in raw materials before processing.
Micro-tolerance control on the inner and outer diameters is maintained by advanced cold-drawing techniques. You get tubing with concentricity variations of less than.05mm for optimal seal compatibility with compression fittings.
Grain boundary carbide precipitation is eliminated by controlled recrystallization annealing. This heat treatment provides optimum corrosion resistance and excellent ductility for field bending and flaring operations.
All batches of manufacturing are subject to full non-destructive testing procedures. Using continuous eddy current scanning we may identify small surface imperfections that are undetectable to the naked eye.
High pressure hydrostatic tests are carried out to ensure the structure is sound under circumstances simulating actual service. Test pressures are higher than your operating requirements for long-term dependability.
Core Performance Advantages for Critical Applications
Material & Functional Superiority: The solid metal cross-section provides maximum pressure-bearing capacity without weld-seam vulnerability. Your systems gain superior tensile strength and extreme reliability under thermal cycling conditions.
Production Quality & Testing Rigor: Multi-pass precision cold-drawing under strict oversight creates uniform wall thickness distribution. Volumetric inspection protocols eliminate the microscopic flaws that cause premature system failures.
Versatile Customization & Dimensional Sizing: We accommodate heavy-duty industrial requirements with custom length adjustments up to 12 meters. Secure bulk logistics with steel strapping and protective plywood crating ensure damage-free international delivery.
The fully annealed austenitic structure enables flawless field manipulation. You can perform tight-radius bends and flaring operations without stress fractures or wall thinning that compromise system integrity.
Ultra-precise dimensional control ensures perfect interface with double-ferrule compression systems. Your installation teams achieve leak-free connections on the first assembly attempt.
Comprehensive Application Scenarios
High-pressure hydraulic control lines benefit from seamless construction. The absence of longitudinal welds prevents catastrophic bursting in mobile equipment and industrial machinery.
Instrumentation systems require precise dimensional tolerances for reliable operation. Your measurement accuracy improves when using tubing with consistent internal diameter and surface finish.
Corrosion resistance is a key property in chemical processing applications. The astm a269 seamless tube withstands aggressive media including organic solvents, acids, and alkaline solutions without degradation.
It has a good thermal conductivity that makes it useful for heat exchangers and condensers. The smooth wall design promotes effective heat transmission while retaining structural integrity against temperature variations.
Gas chromatography systems need ultra-clean internal surfaces. Our bright annealed finish eliminates contamination sources that distort analytical results in laboratory settings.
Quality Assurance & Material Traceability
Every shipment includes complete EN 10204 3.1 Mill Test Certificates documenting chemical composition and mechanical properties. You receive full heat number traceability for regulatory compliance and failure analysis.
Third-party inspection services from SGS, TÜV, and BV are readily available. We coordinate witness testing to satisfy your quality assurance requirements before shipment departure.
PMI material verification confirms grade accuracy at the point of delivery. Your receiving teams can validate material authenticity using portable XRF analyzers against our certified documentation.
One-year product warranty against confirmed manufacturing faults. When quality concerns occur, our replacement policy is designed to minimise disruptions to your production plans.
Professional Packaging & Global Logistics Support
Surface finish integrity is protected throughout travel with international shipping packing. Each sheet is in a plastic sleeve to avoid scratches and moisture exposure that may affect corrosion resistance .
Plywood cases for customs clearance complying with ISPM-15. Your shipments transit foreign borders without quarantine delays or treatment problems.
Hexagonal bundle configuration steel strapping for fast container loading. We make the most use of space so you minimise your freight expenses per unit on high volume purchases.
Export paperwork comprises business invoices, packing lists and certificates of origin. Our logistics staff arranges the FOB, CFR, CIF and DDP terms as per your purchase request.
Mixed loading capability allows consolidation with pipe fittings, flanges, and valves. You reduce shipping expenses by combining multiple product categories in single container shipments.
FAQ
Q：What defines the foundational pressure containment capability of this product product line?
A：Formulated with a completely uniform solid metal cross-section free of welded joints, this seamless tube delivers maximum pressure-bearing performance and extreme reliability under critical thermal loops through superior tensile strength.
Q：How does this seamless tube maintain stable performance when routed through intricate tight-radius bends?
A：The tubing utilizes a highly ductile fully annealed austenitic structure that allows flawless field bending and flaring without developing stress fractures or wall thinning during installation.
Q：What strict leak-detection testing matrix is enforced to validate the physical safety of these seamless lines?
A：Every single piece clears continuous online eddy current scans combined with high-pressure hydrostatic leakage validation or comprehensive air-under-water bubble diagnostics before shipment approval.
Q：Can the outer circumference be tailored to interface seamlessly with high-precision double-ferrule compression systems?
A：Yes, we maintain ultra-precise micro-tolerance limits on both internal and external circumferences ensuring perfect flush seals and robust holding force with global instrumentation fittings.
Q：How are these seamless tubes packaged to prevent internal corrosion or debris accumulation during transit?
A：Every tube is thoroughly passivated, bundled with protective strapping, wrapped in individual plastic sleeves, and packed into secure plywood boxes with waterproof barriers and plastic end protectors.
Contact Us
Ready to source reliable astm a269 seamless tube for your next project? Our technical team provides material selection guidance and custom processing solutions tailored to your specifications. Email info@hballtrust.com for quotations and engineering support today.
