304 stainless pipe fittings
2. Standard: ASTM A403 / ASME SA403, governing high-performance wrought stainless steel butt-welding fittings
3. Process: High-pressure precision forming or forging from certified steel raw materials, ensuring dense structural cores
4. Size Range: Outside Diameter matching all standard pipeline codes, including elbows, tees, reducers, and caps
5. Heat Treatment: Homogeneous solution tempering followed by rapid uniform cooling to optimize material elasticity
6. Surface Finish: Uniform sandblasted satin look, smooth descaled acid-pickled matte, or mechanically polished finish
7. Application: Industrial fluid transit grids, water treatment infrastructure, municipal plumbing, and food processing lines
8. Service Advantage: Large ready stock of standard geometries for immediate container loading, flexible custom low MOQ

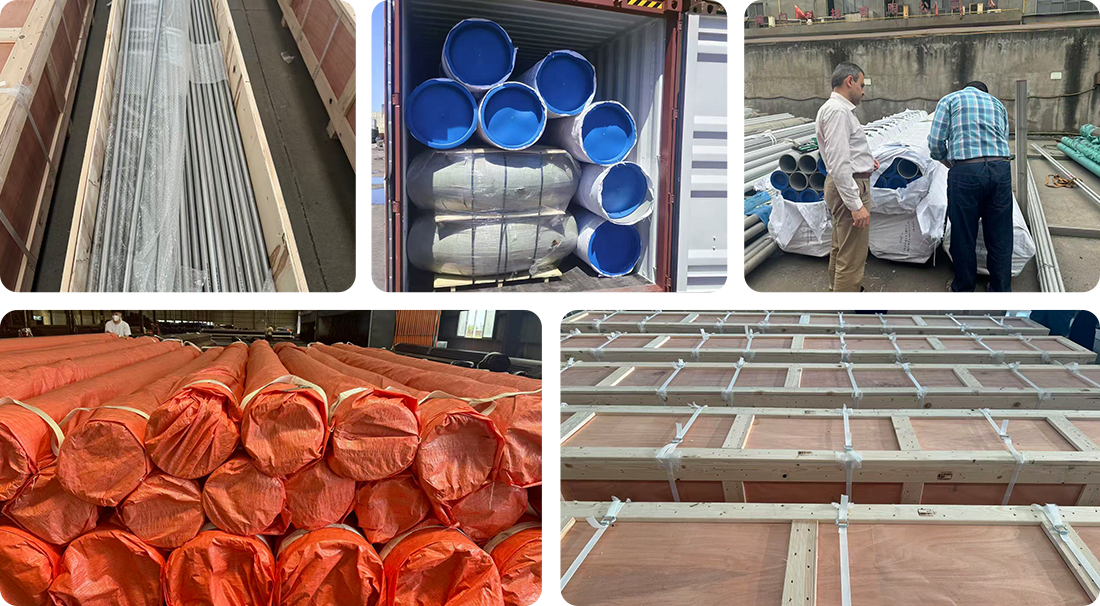

9. Packaging: Each fitting carefully individual-wrapped and securely packed into heavy-duty seaworthy wooden boxes
10. Key Advantage: Offers an outstanding combination of universal atmospheric rust protection and high cost-efficiency
304 Stainless Pipe Fittings – Industrial-Grade Wrought Components for Reliable Fluid Distribution Systems
Hebei All Trust Steel Co., Ltd manufactures premium 304 stainless pipe fittings engineered to ASTM A403/ASME SA403 specifications, delivering exceptional corrosion resistance and structural integrity for industrial piping networks worldwide. These wrought butt-welding fittings are precision mandrel formed and completely solution annealed and rapidly water quenched, and are made from grade 304 austenitic stainless steel with 18% chromium and 8% nickel and include elbows, tees, reducers and caps. We produce over 15,000 tonnes of fittings annually, with 100% hydraulic testing verification and dimensional accuracy within ±0.05mm tolerance. Our fittings are used in chemical processing, food production, municipal water systems, and architectural infrastructure where reliable long-term performance in moderately corrosive conditions is required.
Why Industrial Buyers Choose 304 stainless pipe fittings
They continue to be the most specified austenitic alloy components for all commercial and light industrial applications. The balanced chromium-nickel composition produces a self-healing passive oxide film which protects it against air moisture, mild acids and alkaline solutions.
These fittings have mechanical qualities across a broad temperature range. The alloy is ductile at cryogenic temperatures and maintains tensile strength up to 870°C, therefore is appropriate for chilled water distribution and mild heat transfer circuits.
You may machine to ASME B16.9 dimensional specifications and make parts that mate with standard pipe schedules. These fittings are perfect for use in your project, whether it calls for SCH 10S thin-wall configurations or hefty SCH 80S pressure ratings. They fit well in current pipeline arrangements.
The dependable structural performance under the regular industrial pressures may be provided by the material density of 8.0 g/cm3 and tensile strength of 515 MPa. Allows complicated shapes to be formed without cracking. Excellent weldability removes the need for necessary post-weld heat treatment for most applications.
Technical Specifications & Available Configurations
| Parameter | Specification Details |
|---|---|
| Manufacturing Standard | ASTM A403 / ASME SA403 / EN 10253-3 / EN 10253-4 |
| Material Grade | WP304 (UNS S30400 / 1.4301) |

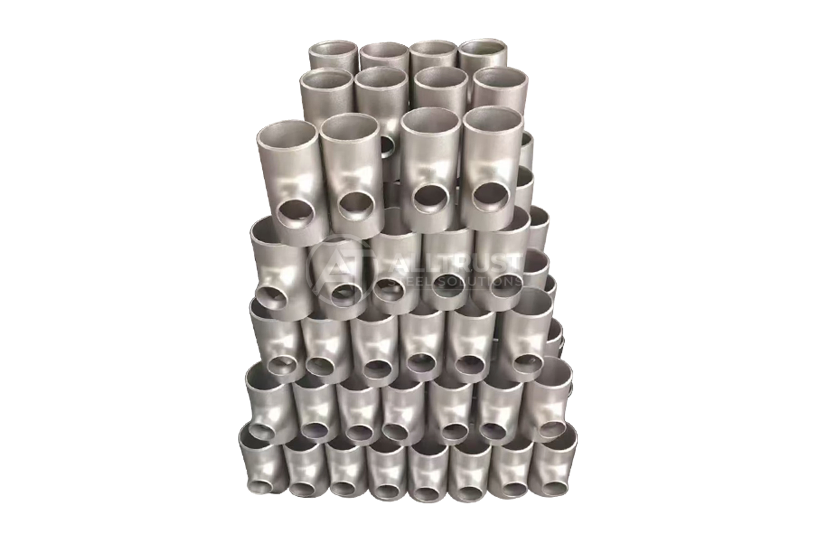

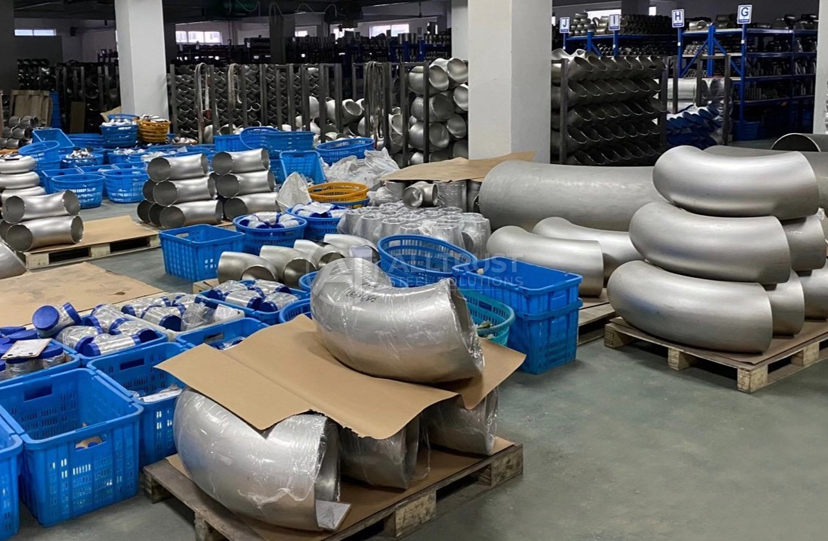

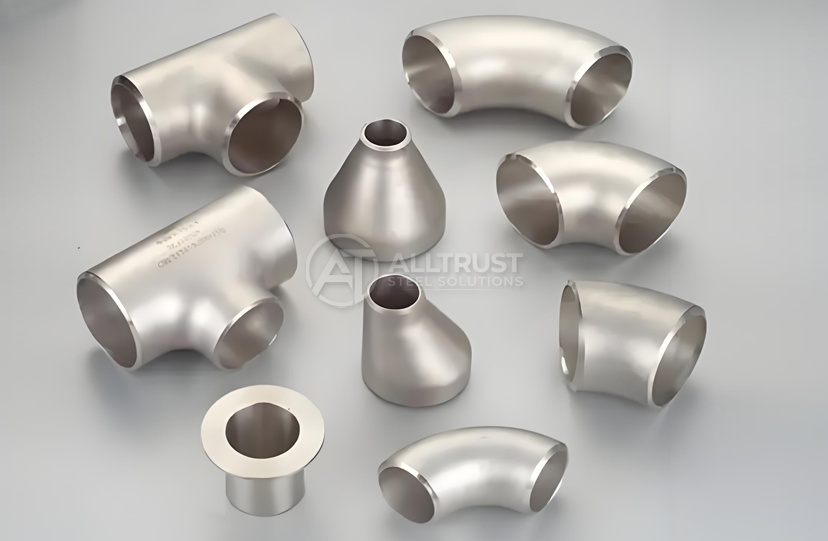

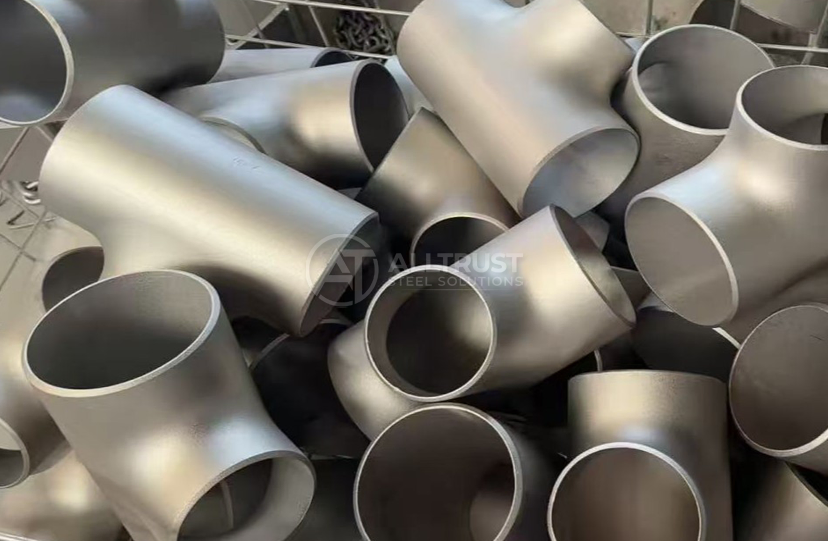

| Component Types | 90°/45° Elbows, Equal/Reducing Tees, Concentric/Eccentric Reducers, Caps, Stub Ends |
| Size Range | 1/2" to 48" NPS (Nominal Pipe Size) |
| Wall Thickness | SCH 5S / 10S / 40S / 80S / 160 / XXS |
| Manufacturing Process | Hot Mandrel Forming / Cold Pressing / Precision Forging / CNC Machining |
| Heat Treatment | Solution Annealing + Rapid Water Quench |
| Surface Finish | Pickled & Passivated / Shot Blasted / Mechanically Polished |
| Testing Methods | Ultrasonic (UT), Eddy Current, Radiographic (RT), Liquid Penetrant (PT), PMI Verification |
| Quality Certificates | EN 10204 3.1/3.2 MTC, ISO 9001:2015, CE/PED |
| Third-Party Inspection | SGS, BV, TUV, DNV, ABS Welcome |
Core Industrial Applications
Food & Beverage Processing Lines
Fittings for dairy production, brewing systems and juice processing equipment must be able to withstand numerous CIP (Clean-in-Place) cycles. The smooth pickled surface resists hot caustic cleansers and acidic sanitizers without pitting, and inhibits bacterial colonisation.
Water Infrastructure - Municipal
The alloy resists chloride stress corrosion in treated drinking water distribution systems. This material will not leak metal ions into drinking water and will be flavour neutral and meet regulatory requirements.
Commercial Plumbing & HVAC Systems
These fittings are used for heating circuits, chilled water loops and condensate return pipework due to their excellent scaling resistance. The passive layer avoids mineral build up which inhibits the flow in hard water zones.
Manufacturing Pharmaceuticals
In regulated industrial settings, these fittings provide the hygienic qualities and corrosion stability needed for clean steam generation, purified water loops and chemical synthesis systems.
Architecture and Structural Systems
Atmospheric corrosion resistance and visual appearance for decades of exposure are used in decorative railings, structural supports and beautiful façade frameworks.

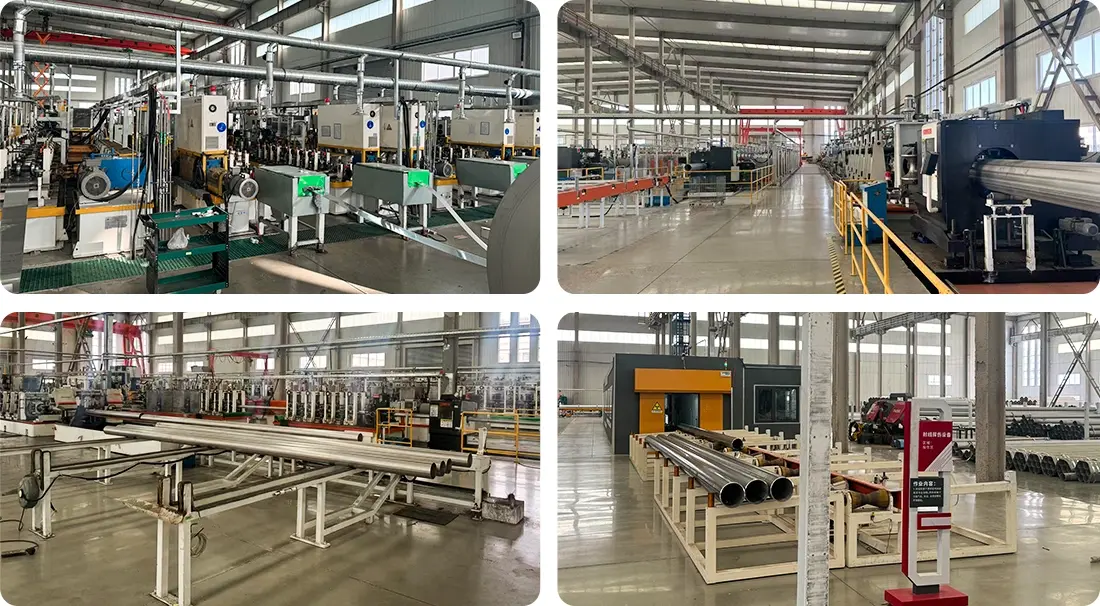

Manufacturing Excellence & Quality Assurance
Our production facility implements a four-stage quality verification protocol for 304 stainless pipe fittings from raw material receipt through final shipment documentation.
Stage 1: Material Verification
Each heat lot is analysed by optical emission spectrometry to verify that the chromium, nickel, and carbon content fulfils the UNS S30400 chemical standards. Heat number traceability connects the completed fittings with verified mill test data.
Step 2: Precise Moulding
Fittings are formed to precise ASME B16.9 dimensions by computer-controlled mandrel presses. The homogeneity of wall thickness is continually checked, and any part that exceeds the tolerance variation of +/- 5% is automatically rejected.
Stage 3: Control of heat treatment
Solution annealing is done in programmable resistance furnaces with temperature regulated at 1040-1120°C for certain time cycles. Immediate water quench seals in the austenitic structure, limiting the formation of carbides which degrade corrosion resistance.
Stage 4: Testing in several ways
Ultrasonic wall scanning finds subsurface irregularities. Metallurgical consistency is checked via Eddy current inspection. Leak-proof integrity validated by hydrostatic pressure testing to 1.5× working pressure. Dimensional Calibration—Verifies end-prep angles, radii and lengths are within design requirements.
With each shipment you will get full EN 10204 3.1 certification for complete traceability of your project quality files and regulatory audits.
Customisation and value-added services
In addition to typical catalogue dimensions, we have variable fabrication options available to meet installation needs.
End preparation & Bevelling
Bevel angles cut to provide for best weld junction as per ASME B16.25. D&R Edges help to remove stress concentration sites that might lead to fatigue fractures under cyclic loading.
Thread Tools
Mechanical connections : NPT or BSPT tapered threads cut to ASME B1.20.1 specifications. Low-pressure applications benefit from thread sealant grooves for improved joint reliability.
Surface Finish Improvement
Ultra-hygienic pharmaceutical pipework with electro-polished surfaces with Ra values of 0.4 µm are also offered. Aesthetic treatments for architectural installations like satin or mirror polishes.
Changes to Custom Dimensions
Wall thickness combinations or geometries and non-standard lengths produced per client designs. Low minimum order numbers facilitate prototype development and small-batch speciality projects.
Inventory Availability & Quick Delivery
A movable warehouse of approximately 5,000 tonnes supplies high turnover configurations for fast container loading.
Standard elbows, tees and reducers NPS 1/2"through 12" ship 3-5 business days. This quantity of inventory prevents delays in projects because of long lead times from international suppliers.
Custom Orders We schedule manufacturing of custom orders in an efficient manner. Standard changes completed in 15-20 days. Complex designed fittings with unique testing requirements ship in 25-30 days. Urgent project stages may have timescales reduced by up to 35% using priority production choices.
Mixed container loading combines pipes, flanges, valves and fittings into one shipment, saving freight costs and minimising logistical coordination.
Professional Support & Technical Resources
Our engineering team provides application guidance throughout your procurement cycle.
Pre-Purchase Consultation
Material selection analysis matches alloy properties to your specific fluid chemistry and operating conditions. Corrosion rate calculations predict service life under documented environmental parameters.
Design Verification
CAD drawing review confirms dimensional compatibility with your piping layout. Stress analysis identifies potential failure points requiring reinforcement or upgraded schedules.
Quality Documentation
Original mill certificates, PMI reports, mechanical test results, and dimensional inspection records provide complete material traceability for project quality assurance files.
After-Sales Support
One-year product warranty covers verified material defects. Technical troubleshooting assistance resolves installation challenges. Replacement component expediting minimizes downtime from unexpected field damage.
FAQ
Q：In what specific everyday industrial distribution networks are these products ideally deployed?
A：Built from a universal chromium-nickel matrix, these fittings provide dependable multi-environment oxidation resistance and reliable mechanical load limits across general industrial fluid, gas, and utility distribution piping networks.
Q：What specific factory finishing steps maximize the native chemical resistance of this standard fitting series?
A：The completed wrought components undergo thorough chemical acid descaling pickling and surface passivation baths to form a dense, uniform chromium-oxide protective film that actively thwarts environmental corrosion.
Q：What mechanical deformation testing is contractually performed to ensure the structural ductility of this batch?
A：Representative production coupons are subjected to severe destructive mechanical flattening trials, cross-sectional flare expansions, and precise Positive Material Identification (PMI) chemical grade verification.
Q：Can these standard fittings be configured with customized edge parameters for rapid field connection?
A：Yes, we provide flexible fabrication selections including standard ANSI beveled ends according to ASME B16.25 codes for butt-welding, precision NPT or BSPT taper threading, and tailored deburred endings.
Q：Are your 304 stainless steel fitting lots approved by independent international pressure equipment auditing bodies?
A：Our entire butt-welding and forged fitting line fully adheres to ISO 9001:2015 frameworks, carries CE/PED compliance, and welcomes independent witness inspections from certified third-party bureaus such as SGS, TUV, and BV.
Contact Us
Contact our technical sales team at info@hballtrust.com for application-specific recommendations, dimensional drawings, and competitive pricing for 304 stainless pipe fittings tailored to your project requirements.
